wifi wireless router
Product Description:wholesale home 300mbps wcdma 3g 4g lte cpe 192.168.0.1 wifi wireless router with sim card slot in india. iStartack MC118 wifi wireless router is made of industry grade pcb board, with overcurrent protection. It has 4 high gain antennas (dual 3G/4G antennas+duel 2.4G antennas), to keep strong signal receving. Watch dog design that can keep the device continuous stable working. Especially, it can support 5-12V power supply, free use device by connecting power bank. Support 32Max Terminal Customers, In 300mbps wifi mode, you can connect up to 32 users or terminals at the same time.
Detail:
 |
3G/4G Signal To Lan
Insert relevant SIM card, then you can transmit the 3G/4G signal to Lan |
 |
3G/4G Signal to WIFI Signal
Insert relevant SIM card, then you can transmit 3G/4G signal to wifi signal |
|||
 |
Hardware WatchDog Design Support
Support anticrash functions. Protect equipment work stable and reliable |
 |
Compatible With Power Bank ChargingEquipped with a micro USB interface, which does not need a voltage convert line and can be charged directly with power bank | |||
 |
4 High Gain Antennas
Inbuild dual 3G/4G antennas+duel 2.4G antennas), to keep strong signal receiving |
 |
Strong Heat Dissipation
Add UART port, GPIO port, and micro USB port, multi-interface to meet your different needs |
|||
 |
Industry Grade PCB Board
Used brand chipset and PCB design, with overcurrent protection more stable and safe |
 |
Support 32Max Terminal Customers
In 300mbps wifi mode, you can connect up to 32 users or terminals at the same time |
Features:
Industry Grade PCB, Used brand chipset and PCB design, with over current protection more stable and safe. 4 High Gain Antennas, Inbuild dual 3G/4G antennas+duel 2.4G antennas), to keep strong signal receving.
Wath Dog Design Function, Automatic detection, device redial automatically redial, keep the 3G/4G/Lte always online.

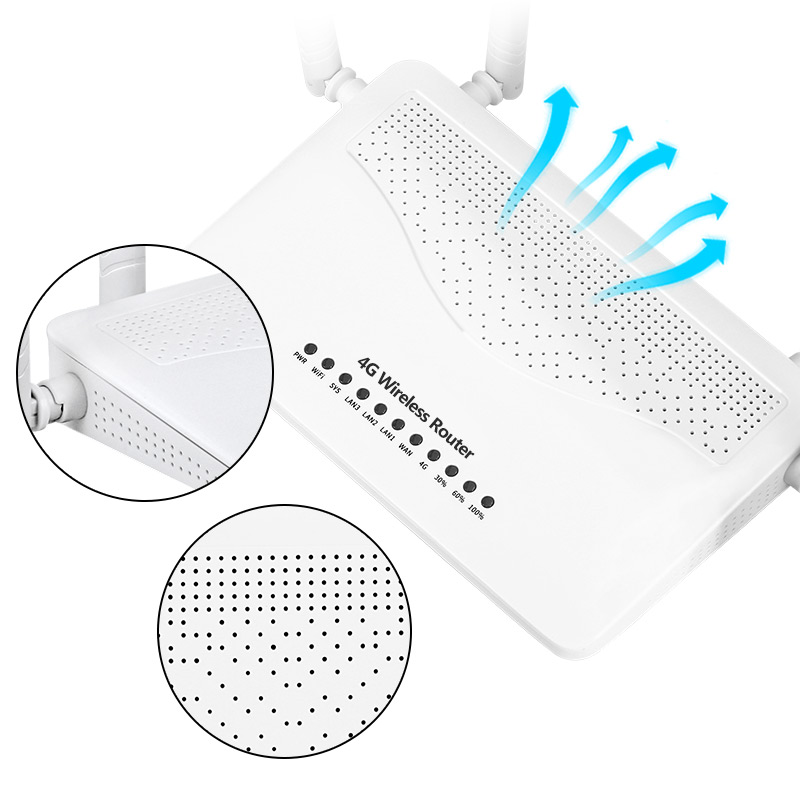

More Strong Heat Dissipation, Equipped with cooling holes on all four sides to make it fully and quickly dissipate heat.
No Need Voltage Convert Line, Equipped with a micro usb interface, which does not need a voltage convert line and can be charged directly with power bank.
Specification:
| Device Model | MC118 4G Wireless Router | |
| CPU | MTK RT7628, MIPS CPU, Basic frequency: 580Mhz | |
| LTE Chipset | USE Qualcomm 9X07 | |
| RAM | 512Mb DDR2 | |
| Flash | 64Mb SPI Flash | |
| Wireless communication Speed | 2.4Ghz 2T2R MIMO max300Mbps | |
| Optional Version CAT4 |
TD5 MDM9607, CAT4 (Aisa, Euro, Au, LA, AF, Middle East, Ocean) |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28 TDD-LTE: B38/39/40/41 WCDMA: B1/B2/B5/B8 TD-SCDMA: B34/B39 CDMA&EVDO: BC0 GSM: 850/900/1800/1900 |
| TE5 MDM9207, CAT4 (Asia, Africa, Euro, AU) |
LTE FDD: B1/B3/B5/B7/B8/B20 TDD-LTE: B38/39/40/41 WCDMA: B1/B5/B8 GSM: 850/900/1800/1900 |
|
| ML7820+ XCI_SU | FDD-LTE B1/3/5/8 TDD-LTE B34/38/39/40/41 TDS B34/39 +WCDMA B1/8 |
|
| ML7820+ CeI_SU | FDD B1/3/5/8 TDD B38/39/40/41 TDS B34/39 WCDMA B1/8 GSM 900/1800 |
|
| Optional Version CAT6 |
Coming Soon | |
| Note: Customization of 3G.4G frequencies are available. | ||
| Data service CAT4 |
TDD-LTE | 3GPP R9 CAT4 DL: 112.5Mbps, UL: 12.5Mbps |
| FDD-LTE | 3GPP R9 CAT4 DL: 150Mbps, UL: 50Mbps | |
| WCDMA | DL: 21Mbps, UL: 5.76Mbps | |
| TD-SCDMA | DL: 2.8Mbps, UL: 2.2Mbps | |
| EDGE | Class12, DL: 236.8kbps, UL:118kbps | |
| GPRS | Class10, DL: 85.6kbps, UL: 85.6kbps | |
| GSM | CSD:9.6kbps | |
| Transmit power | TD-LTE/FDD-LTE: +23 ±2dBm(Power class 3) TD-SCDMA:24dBm +1dB/-3dB (power class 2) WCDMA: +24 +1/-3dBm(Power class 2) GSM B5/8: +33 ±2dBm(Power class 4) GSM B2/3: +30 ±2dBm(Power class 1) |
|
| What New? | 1. 4 High gain antennas (dual 3G/4G antennas+duel 2.4G antennas), keep strong signal receiving | |
| 2. Inbuilt watch Dog, keep device continuous stable working | ||
| 3. Industry grade PCB design, with overcurrent protection | ||
| 4. Support 5-12V power supply, free use device by connecting a power bank | ||
| Interface Type | micro USB DC IN power port *1(5-12V adaptive) | |
| 5.5*2.1mm DC IN port port *1(5-12V adaptive) | ||
| RESET button *1 | ||
| LAN*4 (WAN/LAN0adaptive)10/100Mbpsadaptive | ||
| Indicator | PWR WiFi SYS LAN3 LAN2 LAN1 WAN/LAN0 4G/3G 30% 60% 100% | |
| Antennas | Dual external high gain 4G/3G omnidirectional antenna | |
| Dual external high gain 2.4G omnidirectional antenna | ||
| Device Color | White | |
| Device Size | 19.5*12.2*2.6 (not including antennas) | |
| Power Consumption | Typical power consumption <7W | |
| Protocol Standard | IEEE 802.11b/g/n | |
| Operating frequency | 2.4G | |
| Default gateway | 192.168.10.1 | |
| Default SSID | 4G-CPE-**** | |
| Default password | 12345678 | |
| Working Mode | 3G/4G Wireless router mode | |
| Standard router mode | ||
| Wireless AP+Wireless client bridging mode | ||
| Wireless AP+Client mode | ||
| Working Temperature | —10℃ to 40℃ | |
| Storage temperature | —40℃ to 70℃ | |
| Operating humidity | 40% to 90% RH No condensation | |
| Storage humidity | 10% to 95% RH No condensation | |
