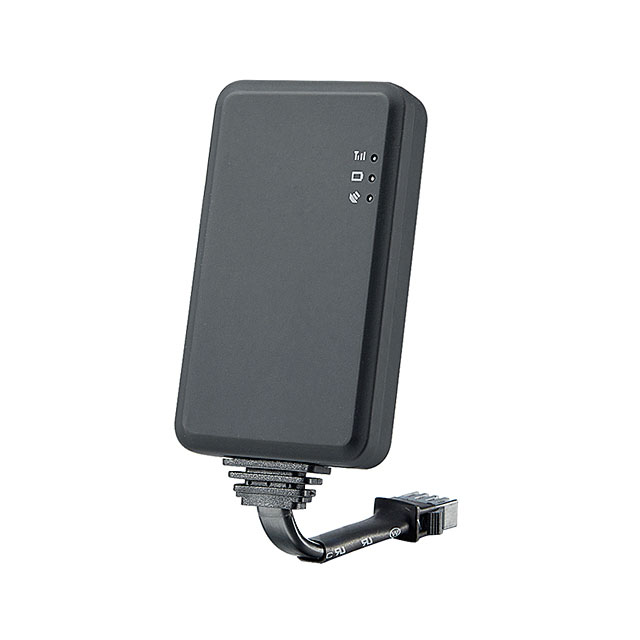

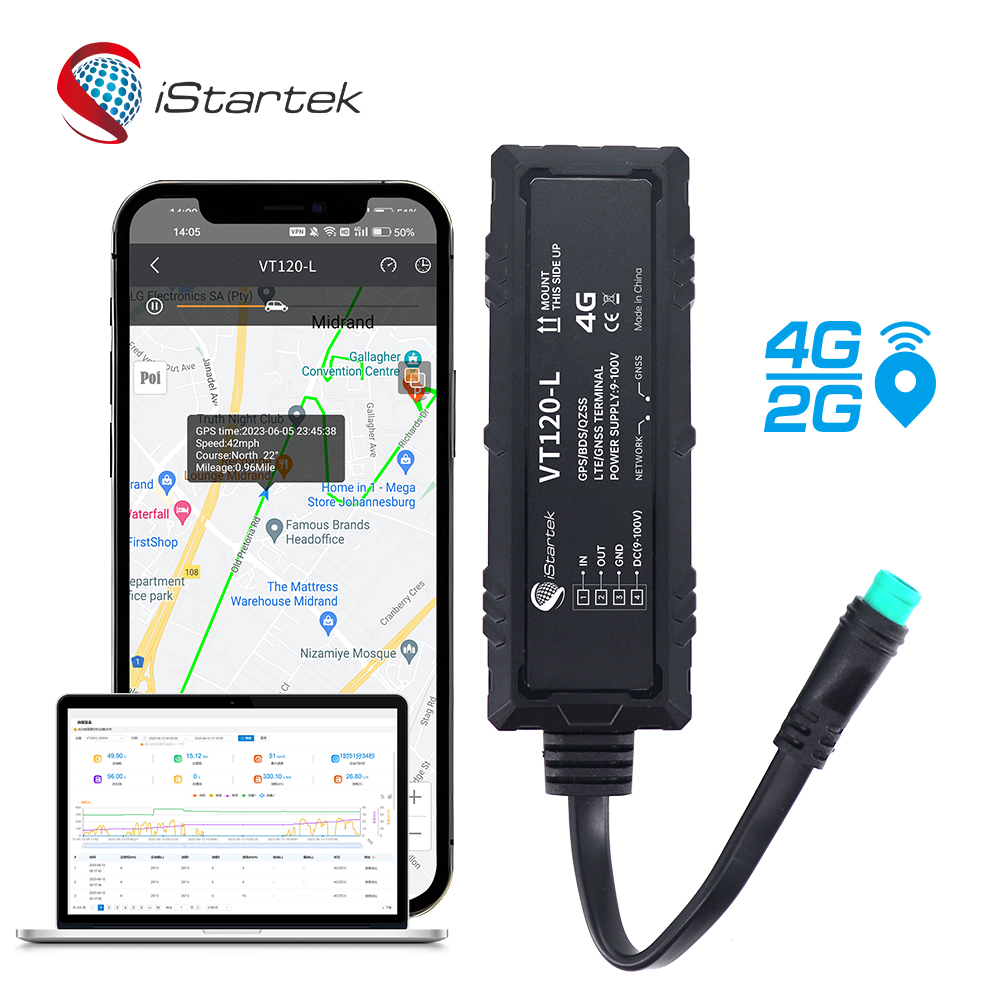

    VT120-L Mini GPS Tracking Device

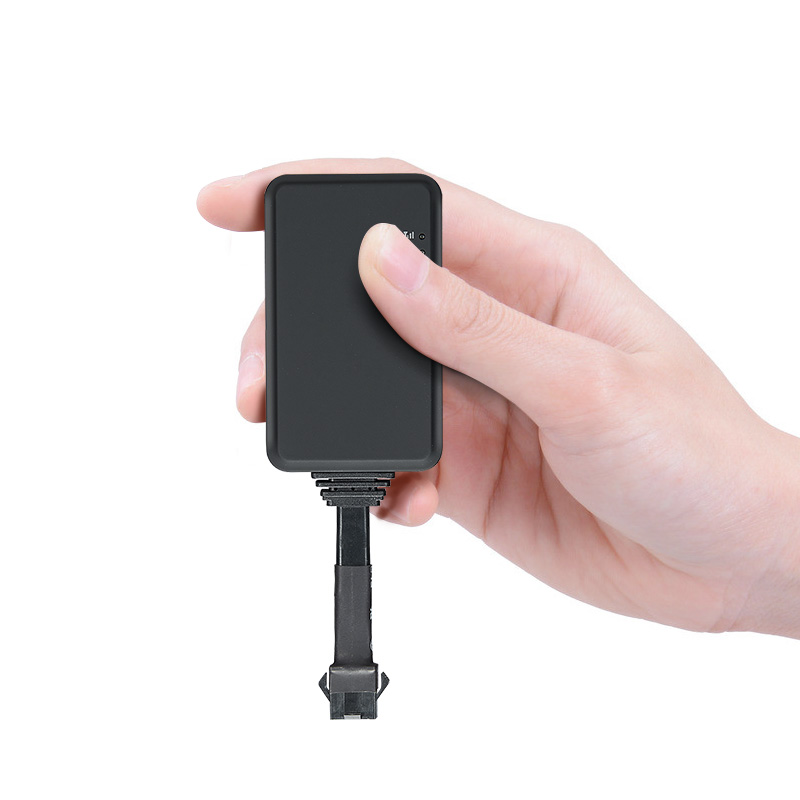

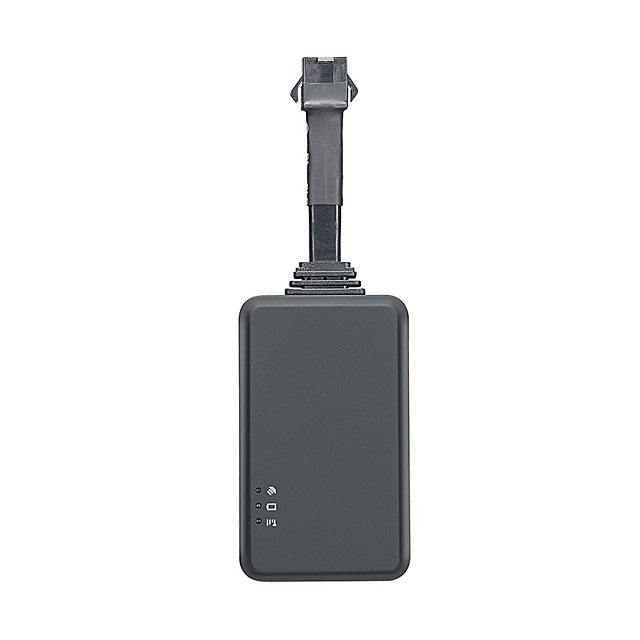

    MINI GPS Tracking Device

    Product Description:

    VT120-L is a GPS car tracker for 4G networks. Built in high-precision GPS positioning module, reports positioning information and vehicle status to the vehicle tracking service platform through 4G network for real-time monitoring, anti-theft and scheduling management of vehicles. It can be applied to fleet management, public transportation management, school bus management, taxi operation management, vehicle insurance company management, rental management, and private car anti-theft, etc.
    DETAIL FEATURES SPECIFICATION Optional Accessories

    Detail:

    9-100V Power Car Bike Bicycle Tracking Position Remotely Cut off Engine Mini Gps Vehicle tracker Multiple I/O

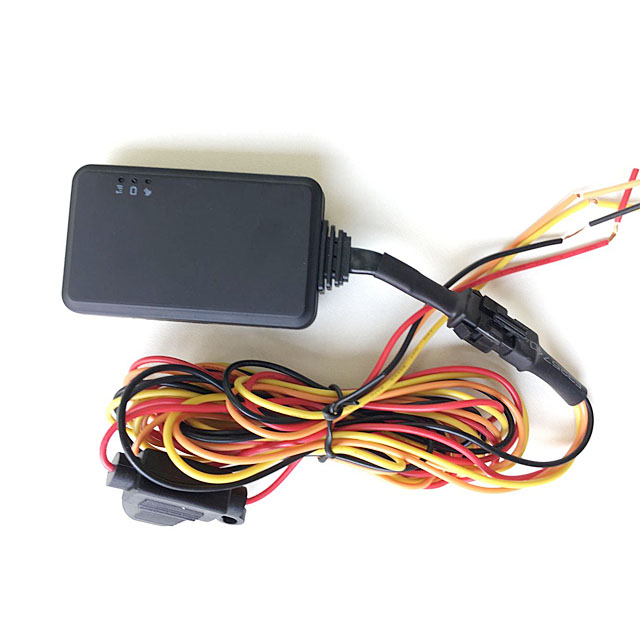

    DC+GND+ 1IN+ 1OUT    		 9-100V Power Car Bike Bicycle Tracking Position Remotely Cut off Engine Mini Gps Vehicle tracker Detect ACC ON/OFF
    Be aware of the ignition status where you need.
    9-100V Power Car Bike Bicycle Tracking Position Remotely Cut off Engine Mini Gps Vehicle tracker GPS/BDS/QZSS(Glonass optional)
    Multiple positioning systems for
    high-precision real-time positioning.
    		 9-100V Power Car Bike Bicycle Tracking Position Remotely Cut off Engine Mini Gps Vehicle tracker 9-100V Power Supply

    9-100V wide operating voltage applied to all types of vehicles.
    9-100V Power Car Bike Bicycle Tracking Position Remotely Cut off Engine Mini Gps Vehicle tracker

    Real-Time Tracking
    Allow the location to be pinpointed in
    real-time.

    		 9-100V Power Car Bike Bicycle Tracking Position Remotely Cut off Engine Mini Gps Vehicle tracker 16Mb Flash Memory
    Store buffer when the signal is lost to keep a complete tracking route.
    9-100V Power Car Bike Bicycle Tracking Position Remotely Cut off Engine Mini Gps Vehicle tracker Multiple alarms
    Instant alert for vibration alarm, wire
    cut off an alarm and acc alarm.    		 9-100V Power Car Bike Bicycle Tracking Position Remotely Cut off Engine Mini Gps Vehicle tracker Track By Time Interval
    Get tracking position by time interval in
    real time.
    9-100V Power Car Bike Bicycle Tracking Position Remotely Cut off Engine Mini Gps Vehicle tracker Mileage Report
    Be able to know the mileage history of
    your vehicle.    		 9-100V Power Car Bike Bicycle Tracking Position Remotely Cut off Engine Mini Gps Vehicle tracker FOTA
    Quickly and easily upgrading firmware
    remotely.
    9-100V Power Car Bike Bicycle Tracking Position Remotely Cut off Engine Mini Gps Vehicle tracker Headling Change Report
    Receive vehicle angle turning report in
    real time.    		 9-100V Power Car Bike Bicycle Tracking Position Remotely Cut off Engine Mini Gps Vehicle tracker Dual Server IP
    Support uploading location data to two
    servers simultaneously.





    Features:

    Specification:

    MODULE

    4G Module A7670 Series
    Technology LTE/GSM/GPRS/GNSS
    Band VT120-L CN：

    LTE-FDD: B1/B3/B5/B8

    LTE-TDD: B34/B38/B39/B40/B41

    GSM: 900/1800MHz



    VT120-L EU：

    LTE-FDD: B1/B3/B5/B7/B8/B20

    GSM: 900/1800MHz



    VT120-L SA：

    LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66

    GSM: 850/900/1800/1900MHz
    GNSS GPS, BDS, Glonass
    GPS Module L76K（GPS+BDS）Dual Mode Positioning
    Receiver 33 Channel
    Tracking sensitivity -165 dBm
    Accuracy < 2.5m CEP
    Hot start < 1 s
    Cold start < 35 s
    Input Voltage Range DC 9 – 100V/1.5A
    Back-up Battery 300mAh Li-Ion Battery





    INTERFACE

    Digital Inputs 1 Digital Input (for ACC Detection)
    Digital Outputs 1
    GSM Antenna Built-in FPC
    GPS Antenna Built-in Ceramic Antenna（25 X 25 X 4mm）
    USB 2.0 Micro-USB
    LED indication 1 blue and 1 green LED indicator light each, built-in, visible from the outside due to light transmission
    SIM Nano SIM Card
    Dimensions 90 x 33.87 x 17mm (L x W x H)
    Weight About 45g
    Operating humidity 5% to 95% non-condensing
    Ingress Protection Rating IP66
    Working temperature -20℃~80℃
