Cheap Tracking Devices

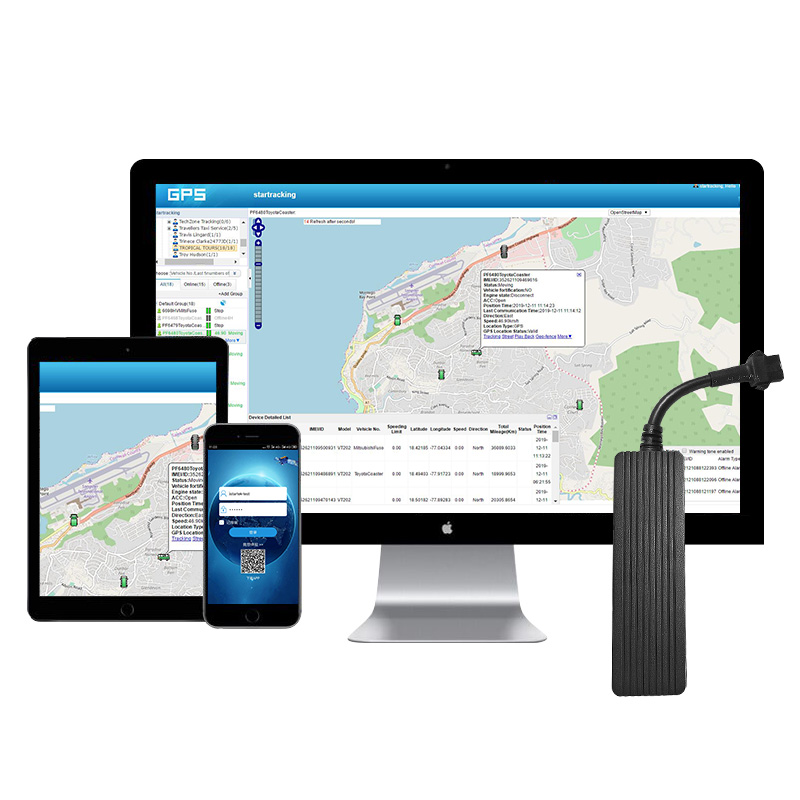

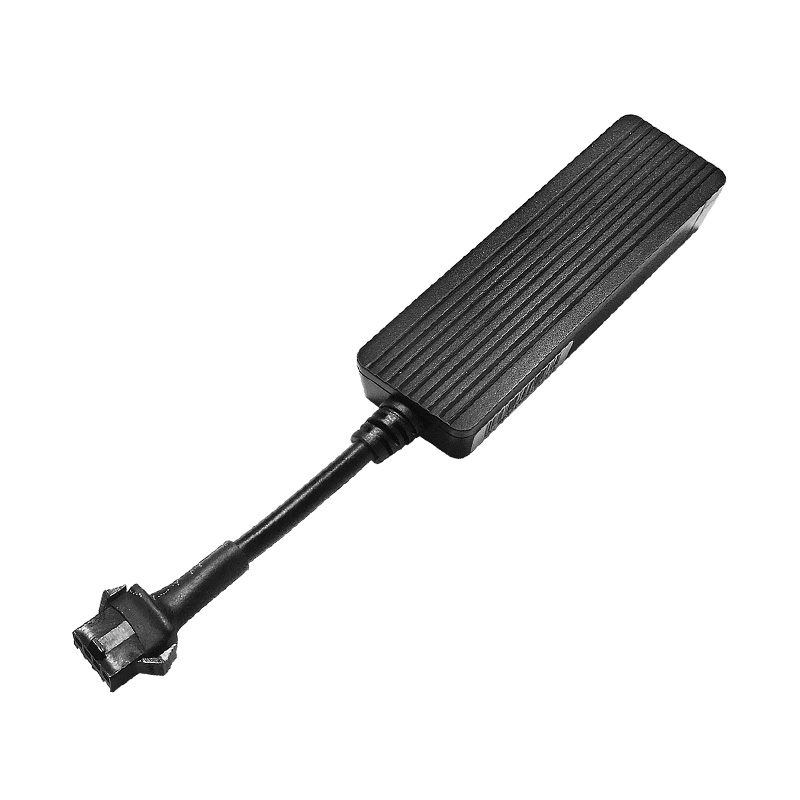

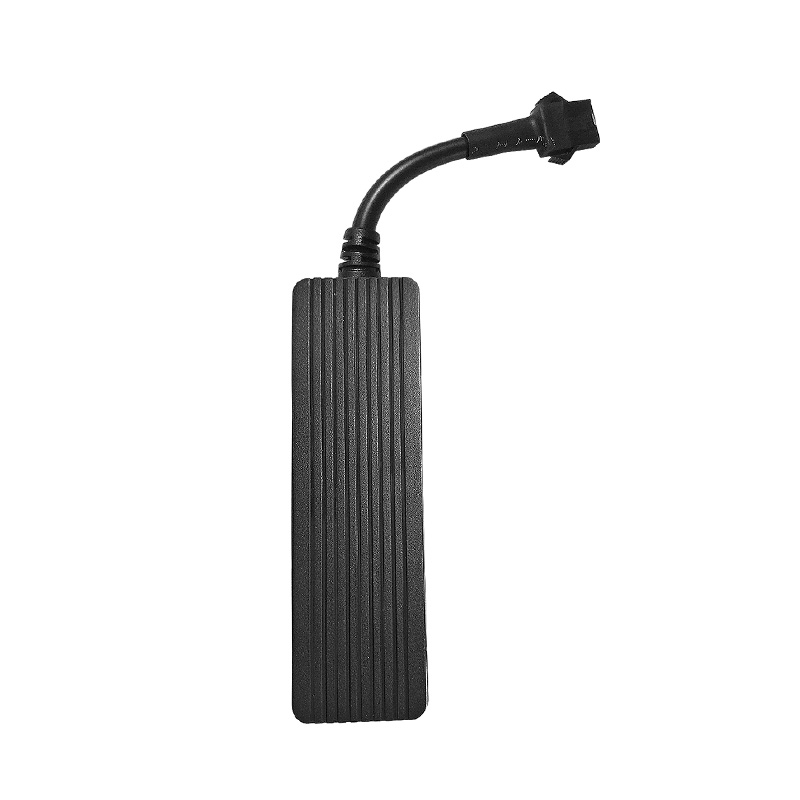

Product Description:VT300-L is a 4G based GPS vehicle tracker. With built-in high-precision GPS positioning module reports the
vehicle location and vehicle status to the vehicle tracking service platform through the 4G network for real-time

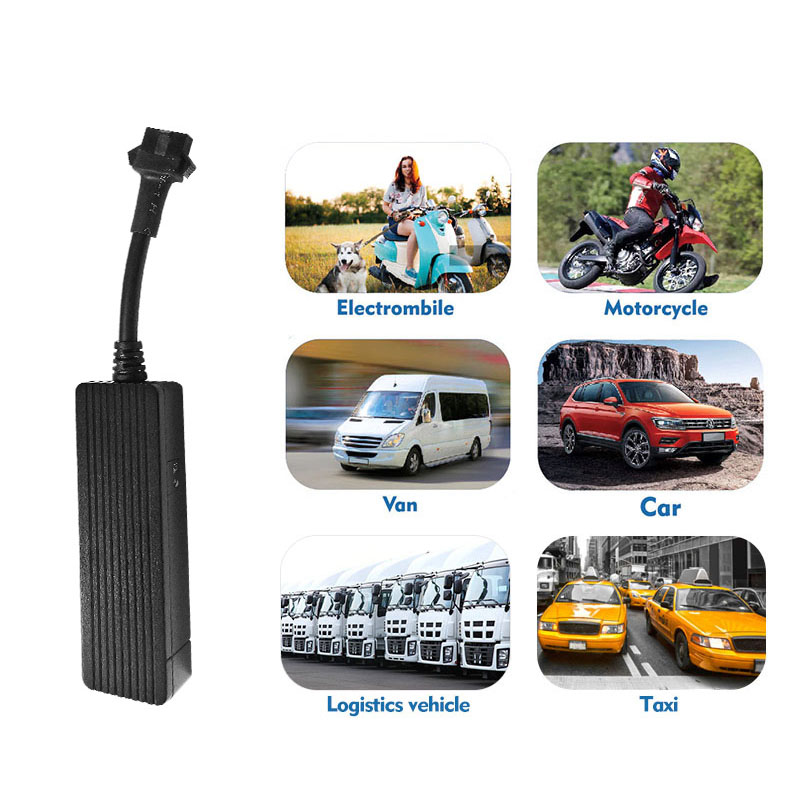

monitoring, anti-theft and dispatch management. It can be applied to fleet management, public transport
management, school bus management, taxi operation management, vehicle insurance company management, lease management and private car anti-theft, etc. VT300-L has a built-in 32Mb Flash memory. When the device enters blind area, it will automatically save historical
positioning data. When the network recover, it will automatically resend historical positioning data to the service
platform. VT300-L contains an RS232 port that can be connected to RFID or ibutton for vehicle driver identification and
vehicle control. It can also be connected the OBD decoder to read the car ECU data and connect other RS232
peripherals to achieve the corresponding function.
Detail:
 |
4G CAT4/CAT1/CATM
Full Network Compatibility. |
 |
GPS/BDS/QZSS
Multiple positioning systems for high-precision real-time positioning. |
|||
 |
Fuel Monitor
Support Capacitive/ultrasonic fuel sensor for fuel monitoring. |
 |
300mAh Internal Battery
Built-in 300mah polymer lithium battery. |
|||
 |
Dual Server IP
Support uploading location data to two servers simultaneously. |
 |
Tamper Alarm
If the car drives over that circle, the server will send the warning to the device automatically. |
|||
 |
32Mb Flash Memory
Store buffer when the signal is lost to keep a complete tracking route. |
 |
Temperature Monitor
Keep fresh transportation of the cold chain, and support 8 temperature sensor at the same time. |
|||
 |
Driving Behavior Monitor
Support harsh acceleration alarm, breaking alarm, harsh turning alarm, speeding alarm, drunk driving alarm, etc. |
 |
Multiple I/O 2IN+ 1AD+ 1OUT+1-WIRE+1RS232 |
|||
 |
IP66 Waterproof
IP66 Water-resistant ensures stable operation in tough environment.
|
 |
9-100V Power Supply
9-100V wide operating voltage applied to all types of vehicles. |
Features:
VT300-L is a 4G based GPS vehicle tracker. With built-in high-precision GPS positioning module reports the vehicle location and vehicle status to the vehicle tracking service platform through the 4G network for real-time monitoring, anti-theft and dispatch management.
It can be applied to fleet management, public transport management, school bus management, taxi operation management, vehicle insurance company management, lease management and private car anti-theft, etc.
VT300-L has a built-in 32Mb Flash memory. When the device enters blind area, it will automatically save historical positioning data. When the network recover, it will automatically resend historical positioning data to the service platform.
VT300-L contains an RS232 port that can be connected to RFID or ibutton for vehicle driver identification and vehicle control. It can also be connected the OBD decoder to read the car ECU data and connect other RS232 peripherals to achieve the corresponding.
Specification:

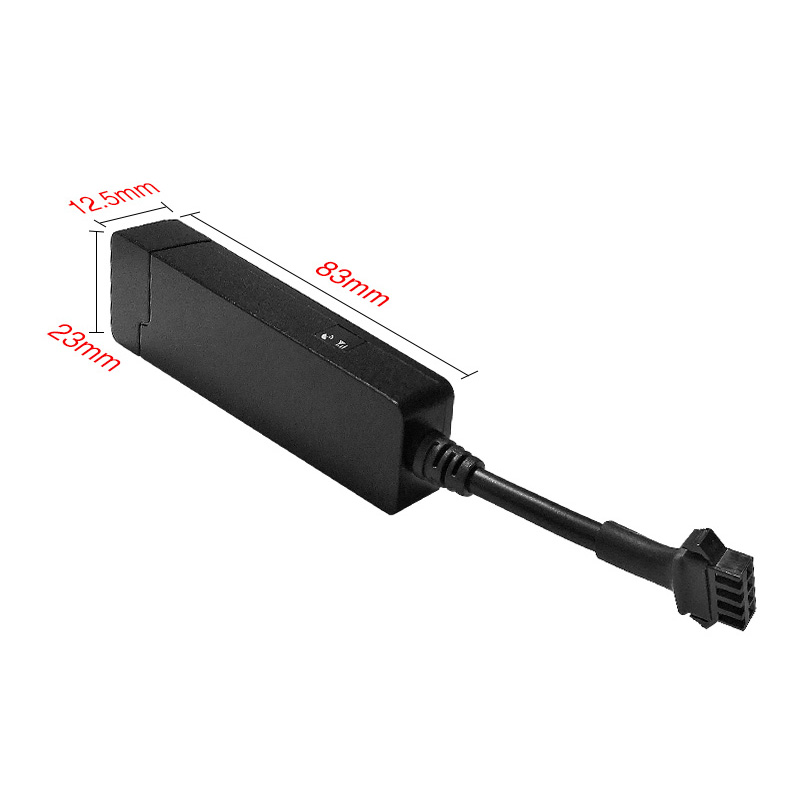

| Case | IP66 Dustproof and Waterproof |
| Power Supply | DC 9~100V/1.5A Input, low power outage protection, red/black wire |
| IN1 | Default negative trigger, software configurable positive, negative trigger, AD2 input (0-36V) |
| IN2 (ACC Detection) | Positive trigger by default, positive and negative trigger can be configured by software |
| AD | Default AD input, software configurable positive and negative trigger, AD1 input (0-36V) |
| Output Port | Open drain output, 500mA, withstand voltage 100V |
| 1-wire Interface | Digital, iButton or Temperature Interface |
| RS232 | Can be connected to RFID, oil sensor, magnetic card reader, OBD |
| MCU | Cortex-M4，AT32F415CBT7 |
| Battery | 300mAh |
| 4G Communication Module | VT300-LCN：（EG915U-CN）
LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 GSM: 900/1800MHz
VT300-LEU：（EG915U-EU） LTE-FDD: B1/B3/B5/B7/B8/B20/B28 GSM: 850/900/1800/1900MHz
VT300-LSA：（EG915U-LA） LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 GSM: 850/900/1800/1900MHz
|
| GPS Module | L76K（GPS+BD）Dual Mode Positioning |
| Flash Memory | 32M bit |
| Sensor | 3D Accelerometer |
| GSM Antenna | built-in, FPC |
| GPS Antenna | Built-in ceramic antenna, 25*25*4mm |
| Switch | Toggle power off |
| SIM Card | Nano SIM Card |
| Debug Port | Micro USB |
| Indicator | 1 blue and 1 green LED indicator light each, built-in, visible from the outside due to light transmission |
| Protocol | Istartek new Protocol |
